| Nazwa marki: | REPLACEMENT PLAIN BEARINGS |
| Numer modelu: | FB090 BRĄZOWE TULEJE |
| MOQ: | NIESTANDARDOWE TULEJE NA ZAMÓWIENIE |
| Cena £: | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Warunki płatności: | T/T |
| Zdolność do zaopatrzenia: | STANDARDOWE TULEJE TOLERANCYJNE |
Tuleje brązowe BRM BRONZE SLEEVE BUSHING MADE TO ORDER FROM CHINA STOCK PRICES CHEAP ONLINE CHINA FACTORY MANUFACTURER

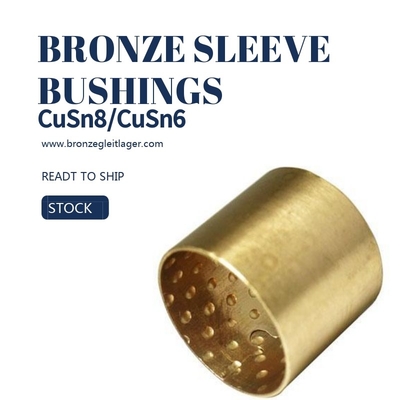

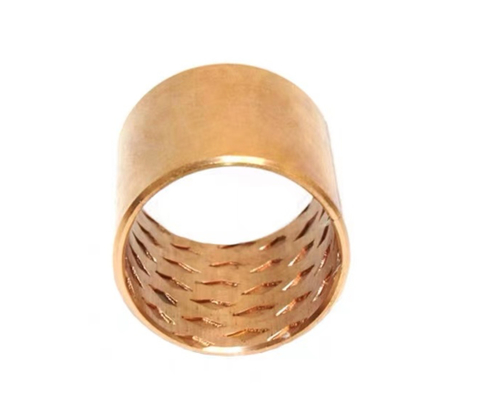

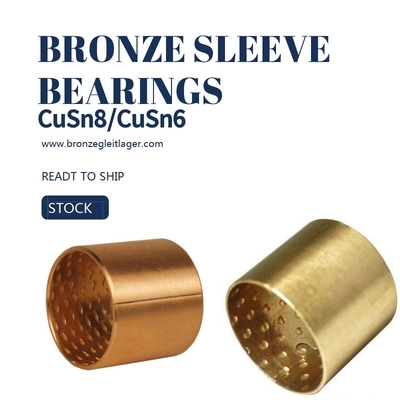

FB090 Wrapped Bronze Bushings Customized Bronze Sleeve Sliding Bearings
Material: CuSn8P,CuSn6.5P
Type: sleeve,flange bearing,thrust washer,strip,plate,sheet,custom-made
Hardness:90~150 HB
Oil pockets:FB090 Sleeve Bush With Round Hole Shape Bushing Bronze Wrapped Bearing
Customer's drawing, various material, size and type, open seam can be divided (straight seam) or snapped (deadbolt), etc.
| QUALITY BRONZE BUSHING MATERIAL | ||
| PN | DIN | |
| BRONZE SLEEVE BUSHING MATERIAL | B101 | CuSn10P |
| B8 | CuSn8 | |
| B6 | CuSn6 | |
| BA1032 | CuAl10Fe3Mn2 | |
| BA1054 | CuAl10Ni5Fe4 | |
| RG7 | CuSn7Zn4Pb7 | |
| B815 | CuSn8Pb15Ni | |
| BK331 | CuSi3Zn3Mn1 | |
Tech. Data:
|
Physical and mechanical Performance |
Mating Axis |
Hardness |
≥50 HRC |
|
Roughness |
0.4~1.0 |
||
|
Max Load Pressure |
|
100 N/mm2 |
|
|
Max Linear Velocity |
|
2 m/s |
|
|
Max PV Value |
|
2.8 N/mm2*m/s |
|
|
Tensile Strength |
|
460 N/mm2 |
|
|
Yield Strength |
|
260 N/mm2 |
|
|
Hardness |
|
90-150 HB |
|
|
Working Temperature |
|
150 ℃ |
|
|
Friction Coef. |
|
0.05~0.2u |
|
|
Heat Conducting Coef. |
|
58W/(m*k) |
|
|
Heat Expansion Coef. |
|
18.5 (10(-6)k(-1) |
Request:
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
BUSHING TYPES FOR SALE
bronze shrouded rings cusn8 bushing bushing bushing bushing bushing self-lubricating bushing bushing bushing auto ring steel bushing back self-lubricating bushing bushing scraper bronze graphite hole bushing bushing bronze filled with graphite bushing foundry ring cast bronze graphite bushing bronze graphite eccentric bushing bronze bronze bushing
